Reversing Adapter Hasselblad X
Product information "Reversing Adapter Hasselblad X "

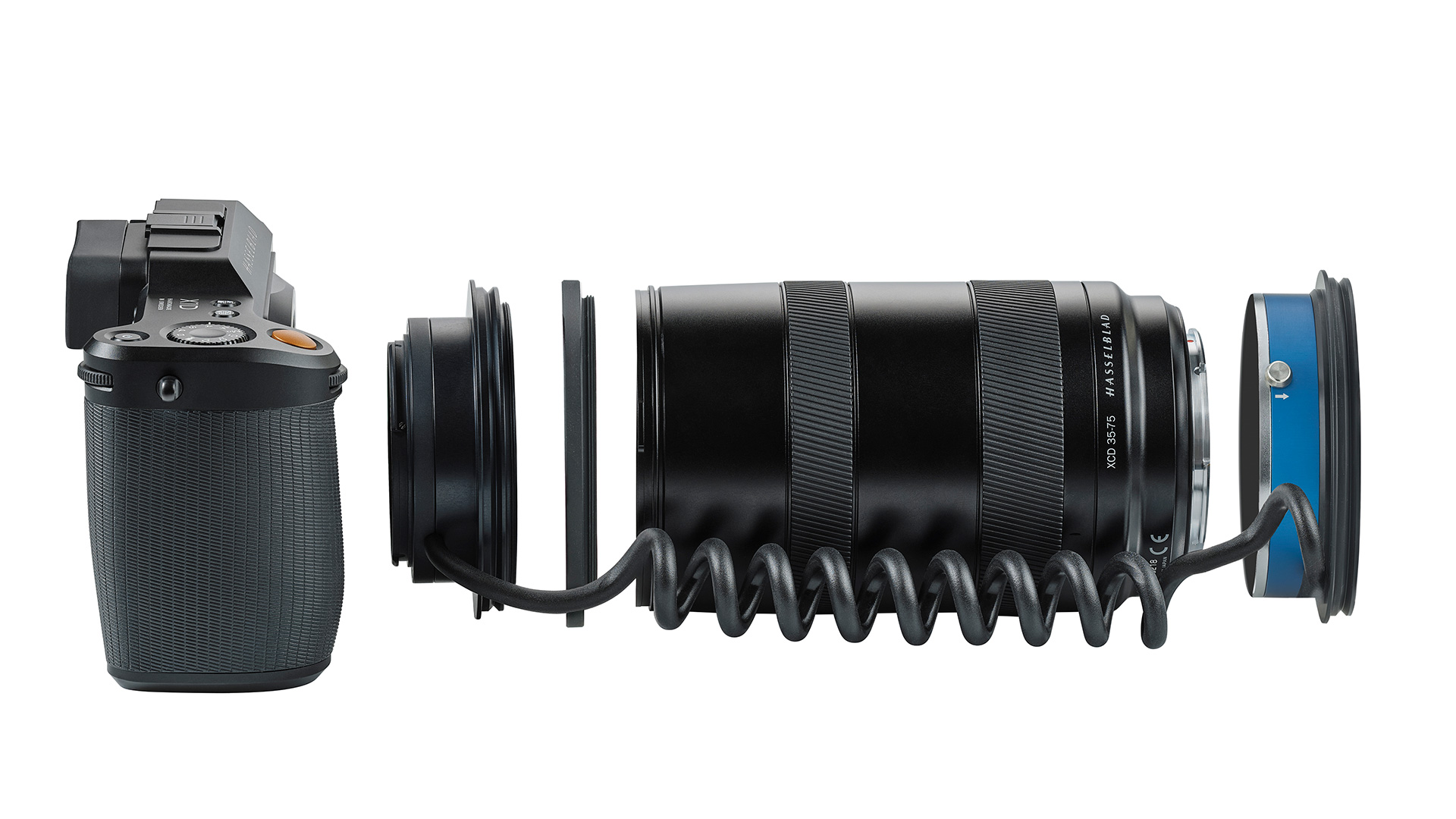

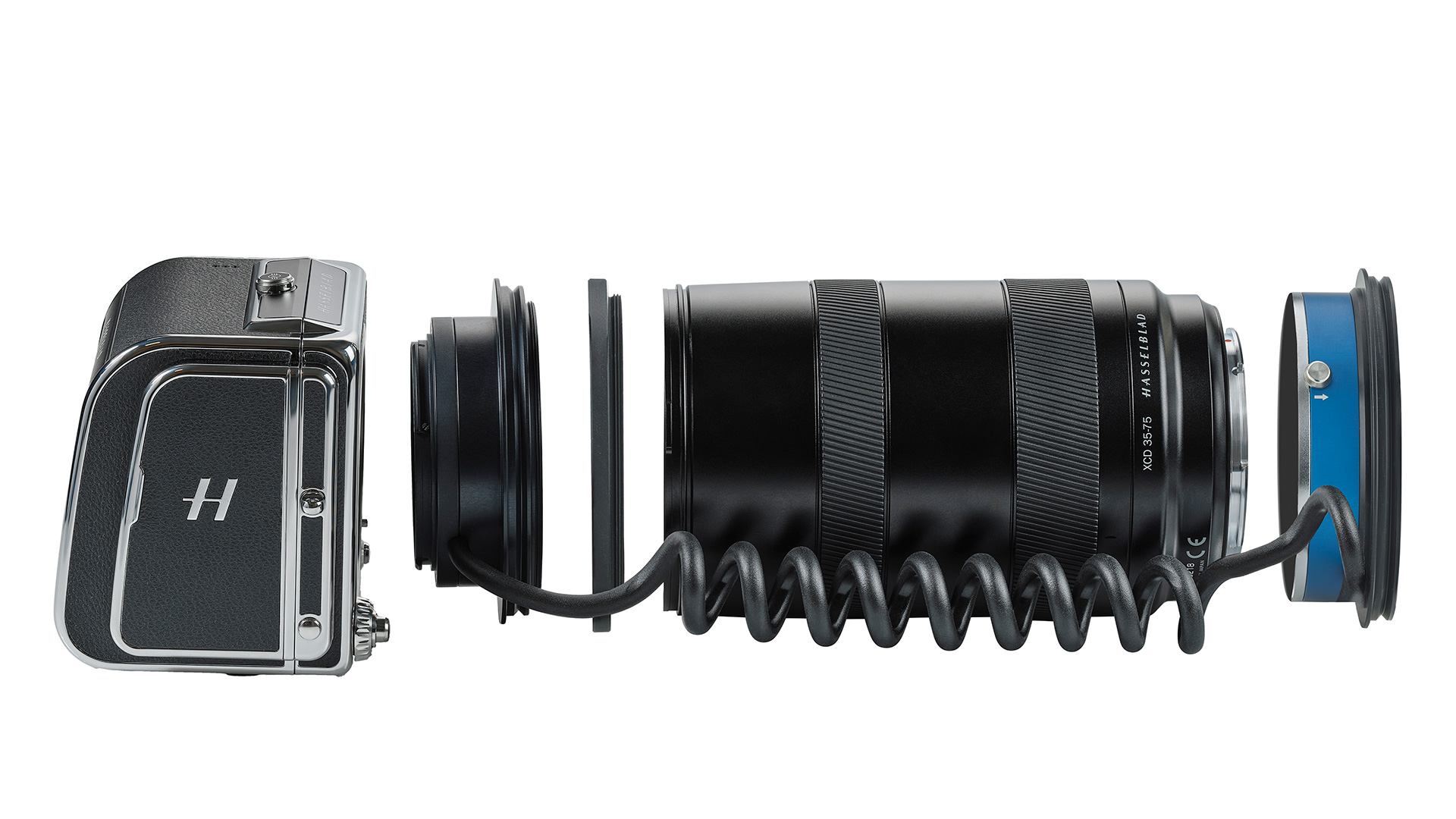

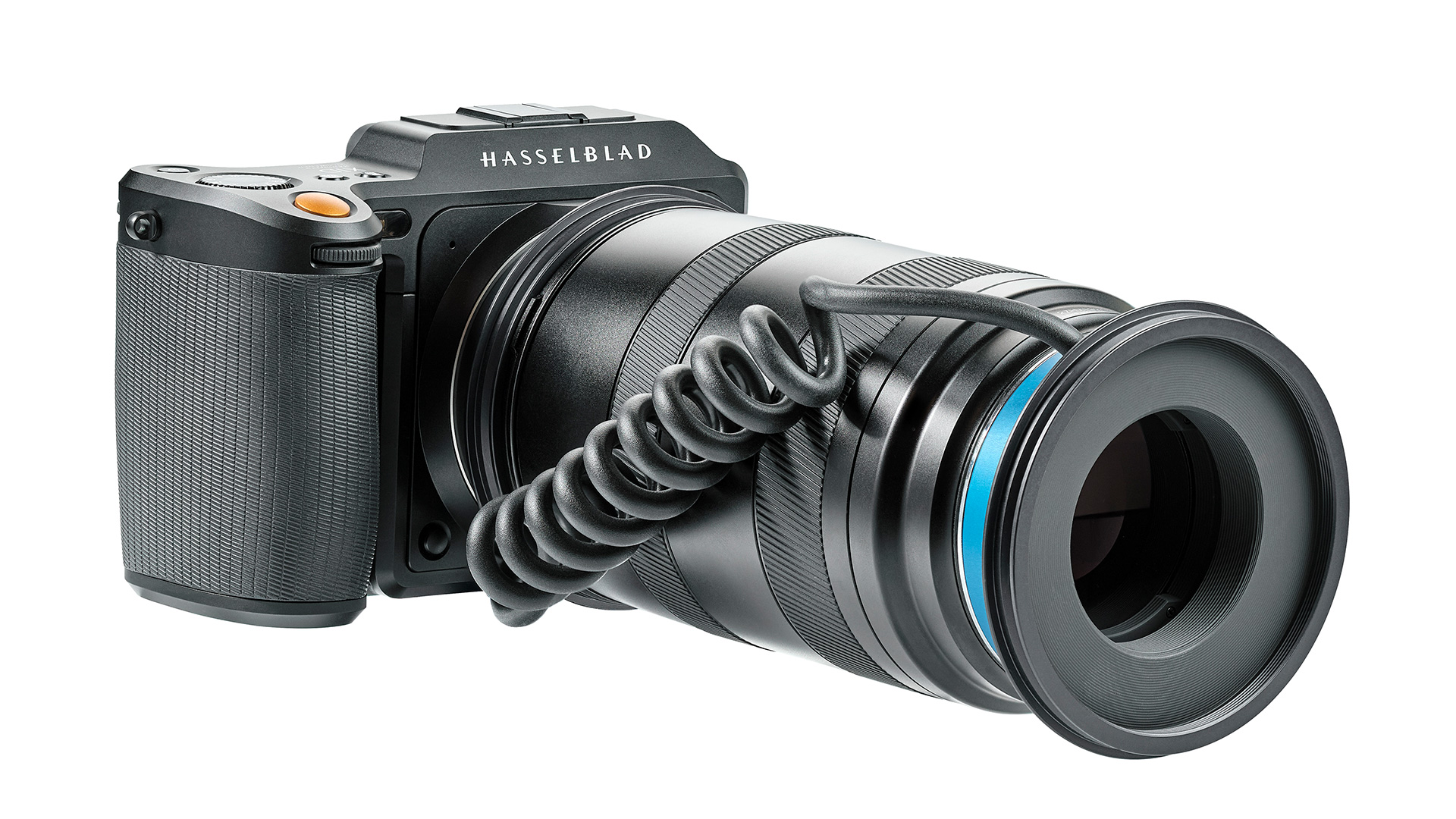

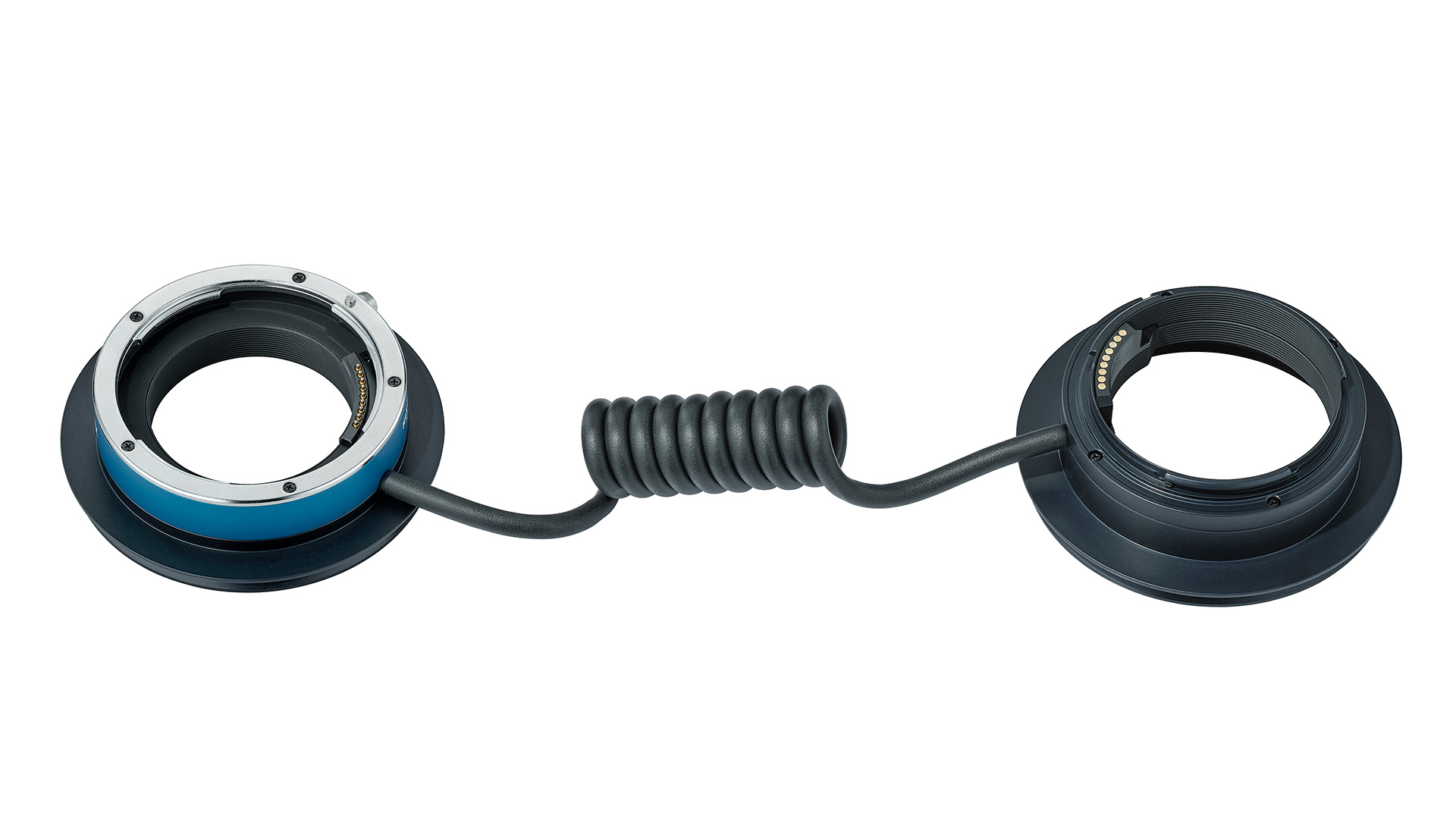

The automatic NOVOFLEX Reverse Adapter opens up the world of extreme close-up photography with outstanding quality for owners of Hasselblad X wide-angle or zoom lenses. The NOVOFLEX automatic reverse adapter lets you reverse mount the lens on the camera. The ring transfers all control functions. The NOVOFLEX automatic reverse adapter is supplied with a standard 77 mm filter diameter. Stepping rings are available for other filter sizes.

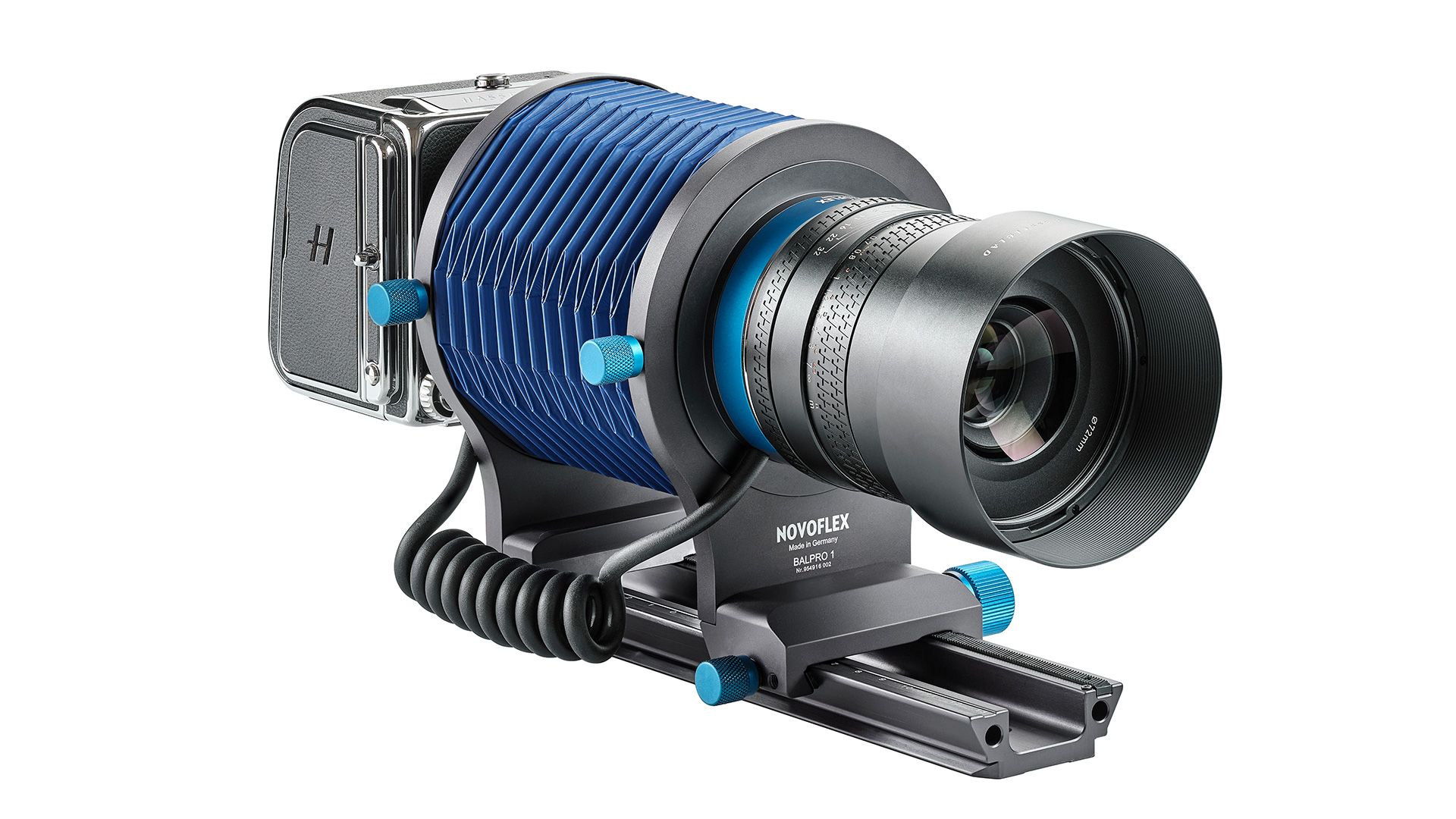

The combination of HAX-RETRO and our universal bellows BALPRO-1 turns them into full-fledged automatic bellows for any Hasselblad X-Series camera (X1D, X2D, 907X, ...). The reversing ring allows lenses to be attached to the bellows in both the normal and reverse positions. No separate connection rings are required to connect HAX-RETRO to the BALPRO bellows. The V-groove for clamping in the standards of the bellows device is already present on both sides of the reversing ring.
The combination of HAX-RETRO with the bellows BALPRO-1 is also available as a pre-configured set BAL-HAX.
Example of achievable magnifications with the Hasselblad XCD 3,5 - 4,5 / 35 - 75 Zoom Lens:
75mm Focal Length: 1:2.1
70mm Focal Length: 1:2
60mm Focal Length: 1:1.4
50mm Focal Length: 1:1
40mm Focal Length: 1.4:1
35mm Focal Length: 1.6:1
Technical specifications:
Length: 33cm
Width: 8.8cm
Height: 2.5cm
Weight: 263g
Filter thread: 77mm
The combination of HAX-RETRO and our universal bellows BALPRO-1 turns them into full-fledged automatic bellows for any Hasselblad X-Series camera (X1D, X2D, 907X, ...). The reversing ring allows lenses to be attached to the bellows in both the normal and reverse positions. No separate connection rings are required to connect HAX-RETRO to the BALPRO bellows. The V-groove for clamping in the standards of the bellows device is already present on both sides of the reversing ring.
The combination of HAX-RETRO with the bellows BALPRO-1 is also available as a pre-configured set BAL-HAX.
Example of achievable magnifications with the Hasselblad XCD 3,5 - 4,5 / 35 - 75 Zoom Lens:
75mm Focal Length: 1:2.1
70mm Focal Length: 1:2
60mm Focal Length: 1:1.4
50mm Focal Length: 1:1
40mm Focal Length: 1.4:1
35mm Focal Length: 1.6:1
Technical specifications:
Length: 33cm
Width: 8.8cm
Height: 2.5cm
Weight: 263g
Filter thread: 77mm
