Product information "Universal Stacking Camera STACKPRO 1 for Fujifilm GFX"
for Fujifilm GFX STACKPRO 1 – The Universal Stacking Camera for Maximum Sharpness
The STACKPRO 1 Universal Stacking Camera sets a new benchmark for achieving uncompromising sharpness in product, industrial and object photography. It combines state-of-the-art digital camera technology with the optical excellence of classic medium- and large-format lenses, enabling precise focus stacking from infinity down to 1:1 reproduction ratios.
Maximum sharpness through modern focus-stacking technology
STACKPRO 1 uses focus stacking to generate maximum sharpness across the entire subject and within a precisely defined depth range. The process is no slower than traditional work with a view camera, yet delivers significantly greater depth of focus without the limitations of classic techniques.
Unlike tilt movements — which restrict maximum sharpness to a single plane — the STACKPRO 1 places sharpness exactly where it is needed, independent of the subject’s geometry.
At the same time, the camera allows the use of the optimal aperture to avoid diffraction. Behind the primary subject, the natural bokeh of the chosen aperture can be used creatively for modern and visually appealing image rendering.
New: Object Stacking Mode (∞ to 1:1)
The external control module includes a newly developed Stacking Camera Mode, specifically designed for stacking in the infinity-to-1:1 range. This mode provides focal-length-dependent control of the focus bracketing steps, ensuring precise and efficient stacking results with any compatible lens.
Reuse of existing medium- and large-format optics
The STACKPRO 1 is fully compatible with numerous professional lens systems, allowing photographers to integrate their existing high-quality optics into a modern stacking workflow:
* Mamiya RB/RZ
* Rodenstock GF
* Schneider Kreuznach GF
* and others
Supported focal lengths start at approx. 50 mm and—when using extension tubes—reach up to roughly 480 mm.
From tiny objects to entire buildings
Thanks to its flexible image scale, the system covers subjects ranging from matchbox-sized objects to full buildings, always with precisely controlled depth of focus.
No perspective shift – ideal for reflective surfaces
During the stacking process, the perspective remains completely stable between exposures. This prevents wandering reflections and makes the system extremely well suited for glossy, curved or mirror-like surfaces.
Optional shift function with PROSHIFT+
When combined with the PROSHIFT+ adapter, the system supports shift movements to correct converging verticals—perfect for rectangular objects, technical products and architectural components.
Power options – studio or mobile use
The STACKPRO 1 can be operated either via AC power or mobile 12 V power banks, ensuring full flexibility for both studio and on-location projects.
Expandability for macro and micro applications
With the optional Q=MOUNT SP1 adapter, the STACKPRO 1 can be upgraded for advanced macro and micro photography. This coupling supports reproduction ratios far beyond 1:1, making the system ideal for scientific imaging, materials analysis, precision engineering and extreme close-up applications.
Scope of delivery
* STACKPRO 1 Universal Stacking Camera
* Mount adapter for Fujifilm GFX

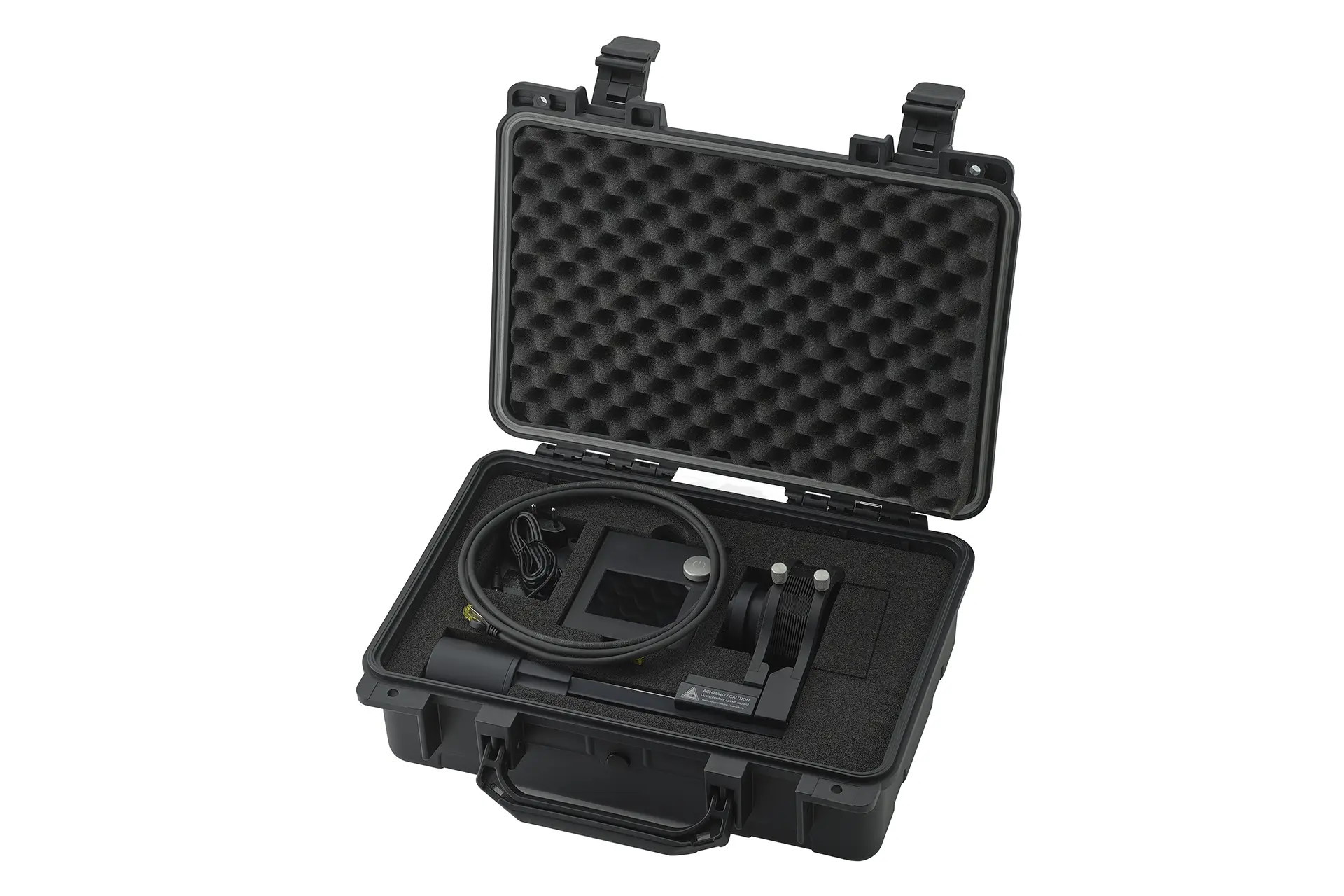

* Supplied in a protective hard case
The STACKPRO 1 Universal Stacking Camera sets a new benchmark for achieving uncompromising sharpness in product, industrial and object photography. It combines state-of-the-art digital camera technology with the optical excellence of classic medium- and large-format lenses, enabling precise focus stacking from infinity down to 1:1 reproduction ratios.
Maximum sharpness through modern focus-stacking technology
STACKPRO 1 uses focus stacking to generate maximum sharpness across the entire subject and within a precisely defined depth range. The process is no slower than traditional work with a view camera, yet delivers significantly greater depth of focus without the limitations of classic techniques.
Unlike tilt movements — which restrict maximum sharpness to a single plane — the STACKPRO 1 places sharpness exactly where it is needed, independent of the subject’s geometry.
At the same time, the camera allows the use of the optimal aperture to avoid diffraction. Behind the primary subject, the natural bokeh of the chosen aperture can be used creatively for modern and visually appealing image rendering.
New: Object Stacking Mode (∞ to 1:1)
The external control module includes a newly developed Stacking Camera Mode, specifically designed for stacking in the infinity-to-1:1 range. This mode provides focal-length-dependent control of the focus bracketing steps, ensuring precise and efficient stacking results with any compatible lens.
Reuse of existing medium- and large-format optics
The STACKPRO 1 is fully compatible with numerous professional lens systems, allowing photographers to integrate their existing high-quality optics into a modern stacking workflow:
* Mamiya RB/RZ
* Rodenstock GF
* Schneider Kreuznach GF
* and others
Supported focal lengths start at approx. 50 mm and—when using extension tubes—reach up to roughly 480 mm.
From tiny objects to entire buildings
Thanks to its flexible image scale, the system covers subjects ranging from matchbox-sized objects to full buildings, always with precisely controlled depth of focus.
No perspective shift – ideal for reflective surfaces
During the stacking process, the perspective remains completely stable between exposures. This prevents wandering reflections and makes the system extremely well suited for glossy, curved or mirror-like surfaces.
Optional shift function with PROSHIFT+
When combined with the PROSHIFT+ adapter, the system supports shift movements to correct converging verticals—perfect for rectangular objects, technical products and architectural components.
Power options – studio or mobile use
The STACKPRO 1 can be operated either via AC power or mobile 12 V power banks, ensuring full flexibility for both studio and on-location projects.
Expandability for macro and micro applications
With the optional Q=MOUNT SP1 adapter, the STACKPRO 1 can be upgraded for advanced macro and micro photography. This coupling supports reproduction ratios far beyond 1:1, making the system ideal for scientific imaging, materials analysis, precision engineering and extreme close-up applications.
Scope of delivery
* STACKPRO 1 Universal Stacking Camera
* Mount adapter for Fujifilm GFX
* Supplied in a protective hard case
| ARCA-compatible: | yes |
|---|---|
| Camera End: | Fujifilm GFX |
| Lens in the scope of delivery: | no lens |
| Lower connector: | 1/4"-20, 3/8"-16, ARCA-compatible foot |
| Required extension tubes from focal length: | GF-Objektive 240mm - 3x PRO50, GF-Objektive 300mm - 4x PRO50, LF-Lenses 150mm - 1x PRO50 tube, LF-Lenses 150mm - 1x PRO50 tube, LF-Lenses 180mm - 2x PRO50 tube |
| Tilt/Shift-Movements: | No |
| Weight: | 2,5kg |
