Panorama Base with fine-drive ARCA-compatible clamping, Dovetail foot, 360 degree scaling

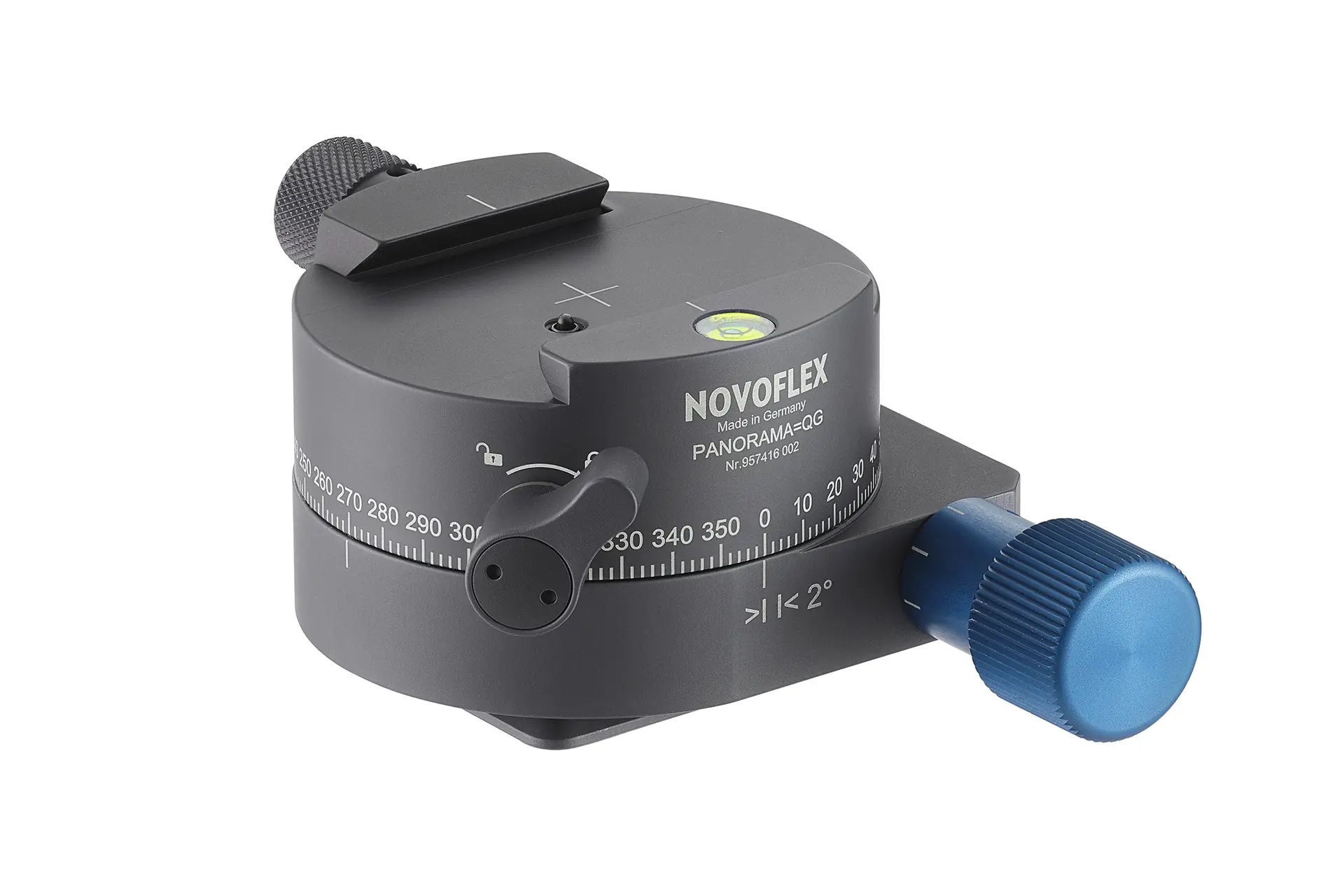

Dovetail foot, 360 degree scaling The PANORAMA‑QG is a high-precision panoramic panning plate with integrated fine adjustment drive, designed for demanding users who require maximum control during alignment. The combination of stepless fine adjustment and rapid coarse positioning enables efficient yet extremely precise operation—ideal for panorama, architectural, and macro applications.

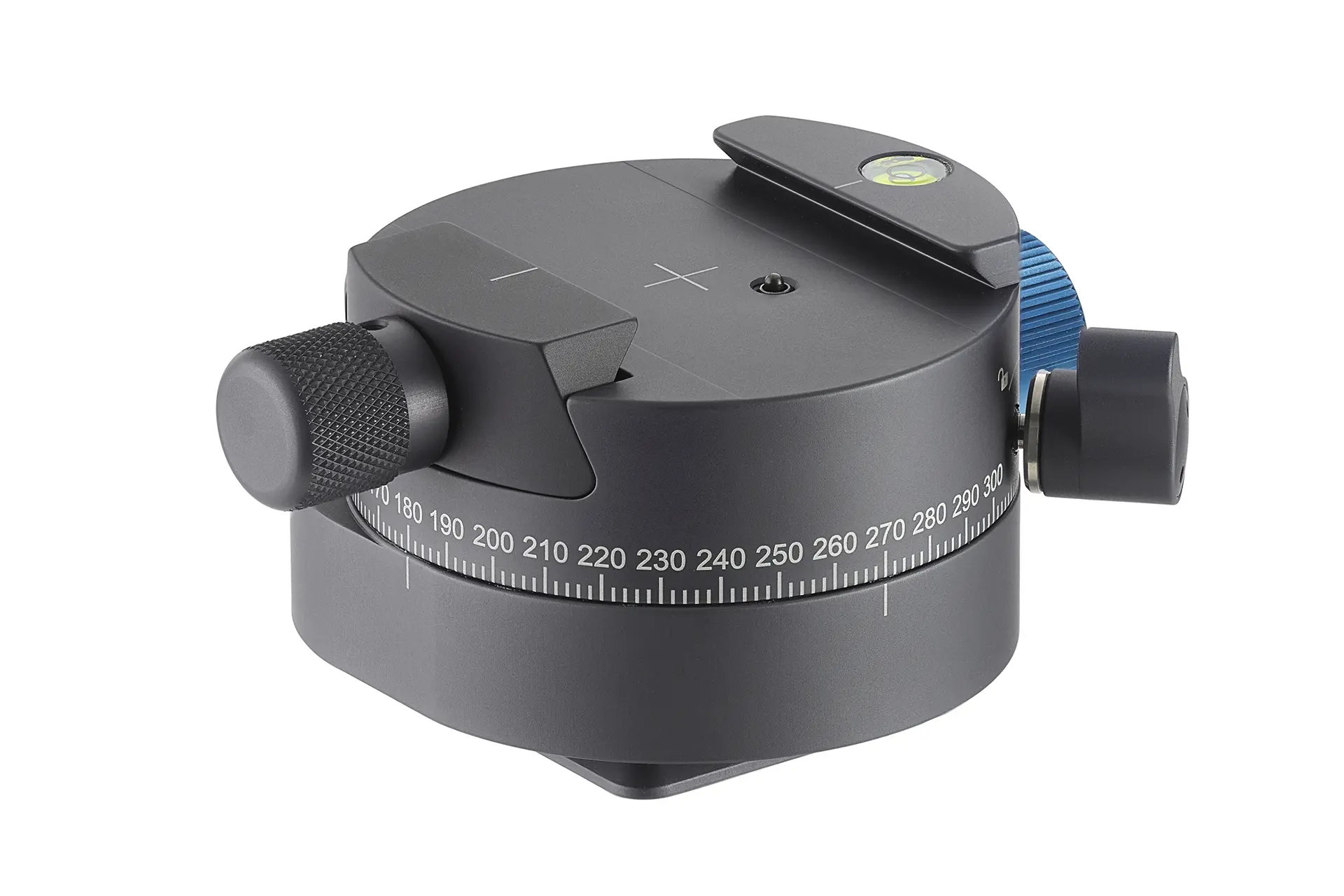

The unit features a 360° scale with 2° increments around the perimeter, complemented by a finely adjustable drive with a 1° scale. When the clamp is released, the plate can be quickly positioned; when engaged, precise micro-adjustments can be made under controlled tension. This ensures excellent repeatability and accurate overlap for multi-row panoramas.

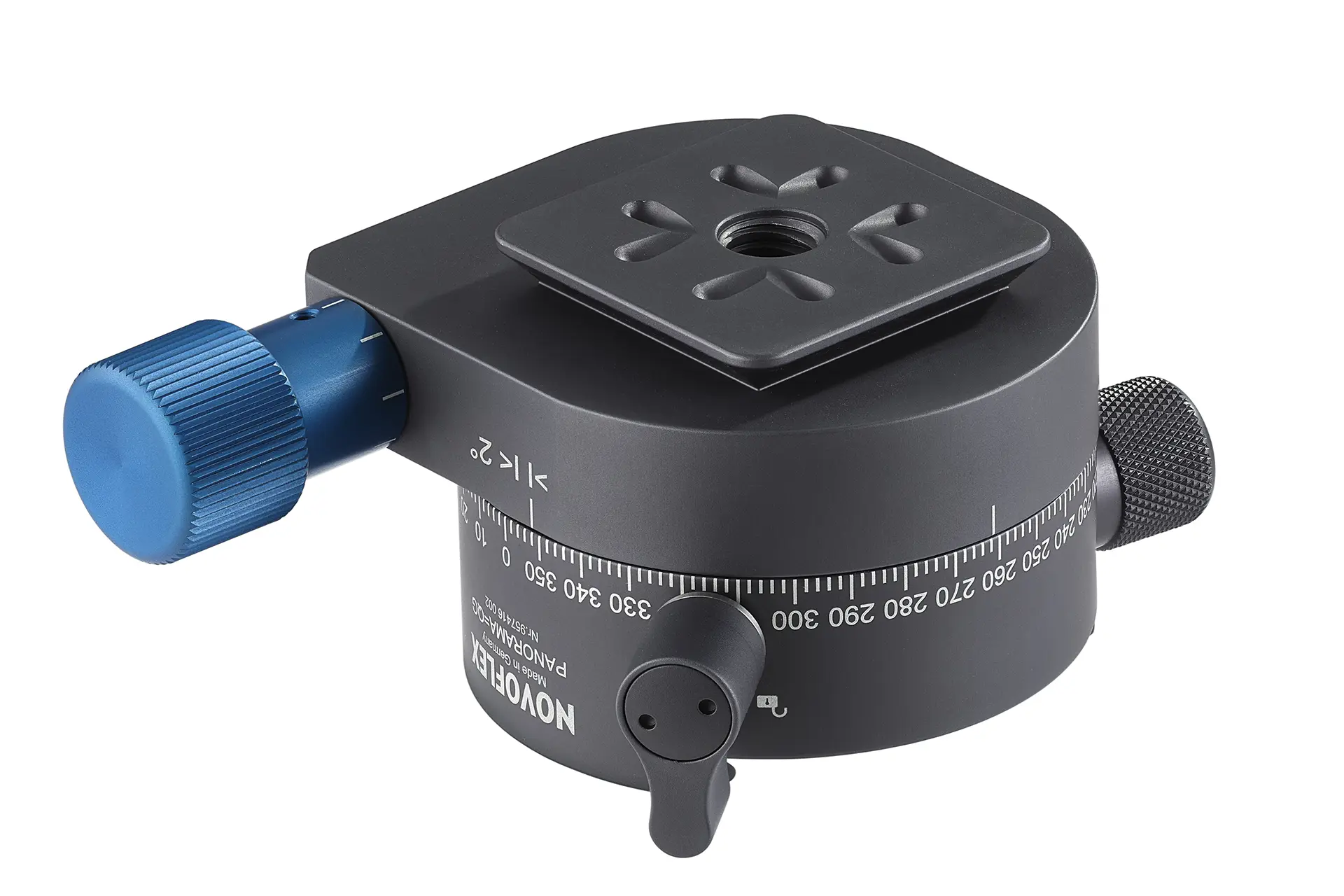

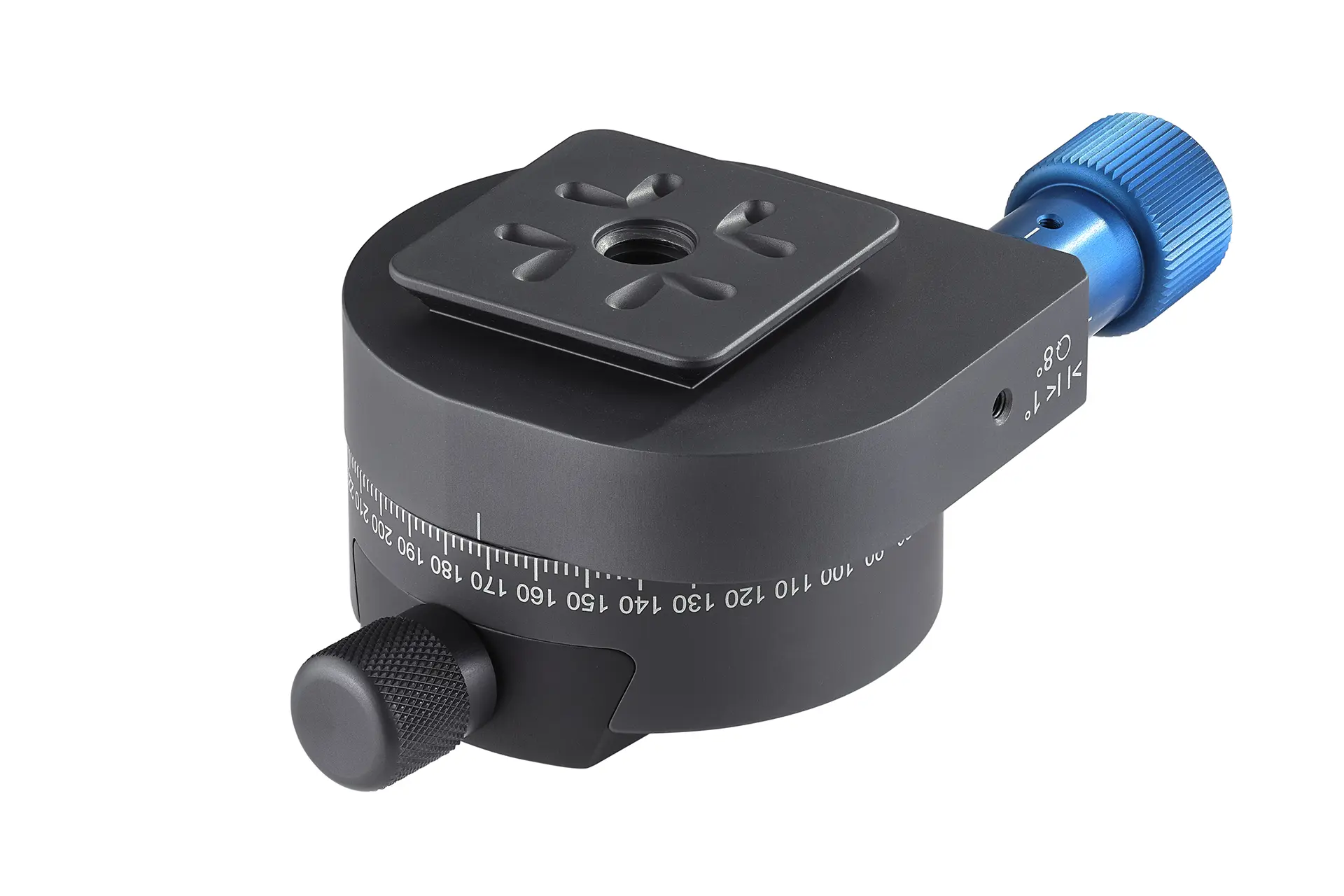

The integrated Q quick-release system is compatible with ARCA-Swiss, NOVOFLEX Q=SYSTEM (UniQ/C), and other common dovetail profiles. The base includes both 1/4" and 3/8" threads, along with a square ARCA-compatible base for maximum mounting flexibility on tripods, sliders, and modular setups.

An integrated bubble level on the top plate ensures accurate horizontal alignment and supports repeatable results—particularly important for both photographic and technical applications.

When combined with NOVOFLEX geared heads such as the QUBE and KOPF², the PANORAMA‑QG becomes part of a highly precise multi-axis positioning system. Additional applications include:

-Multi-row panoramic photography with precise angular increments
-Macro photography and focus stacking with repeatable rotation
-Product and reproduction photography
-Video and motion control setups requiring defined angular adjustments
-Integration into motorized sliders or rotation systems
-Fine alignment of laser systems (e.g. line and rotary lasers)
-Positioning of measurement and testing equipment in laboratory and industrial environments
-Sensor and camera alignment in industrial imaging systems
-Calibration setups for optical and technical equipment
-Antenna and directional radio alignment with defined angular control
-Use in research and development for rotational test setups
-Precise adjustment of lighting systems or projectors

The PANORAMA‑QG expands the NOVOFLEX modular system with a particularly sensitive yet robust rotational component for the highest precision requirements.
